As Power Needs Grow, GaN Emerges as Power Chain Option

June 28, 2018
Several companies are advancing the use of Gallium nitride (GaN) in power conversion equipment, which some believe has the potential to bring greater efficiency to data center power distribution

The data center is an ever-changing part of the world of digital business. In periods of innovation, sometimes we  need to look under the hood to really see some big changes in the data center.

Gartner estimates that ongoing power costs are increasing at least 10 percent per year due to cost per kilowatt-hour (kwh) increases and underlying demand, especially for high power density servers. Meanwhile, the latest AFCOM State of the Data Center report found that the majority of respondents report rack power density is increasing. The estimated mean target rack power density is 7.3 kW. That same report also indicates very little growth around actual data center capacity requirements. This indicates that data center leaders are tasked with doing more, but with less space.

As density increases and our requirements around power continue to grow, how do current power system keep up? Just as shrinking chips and processes are providing more processing capabilities, power solutions will need to follow suit.

One of the solutions getting a look is the use of Gallium nitride (GaN) in power conversion equipment, which some believe has the potential to bring greater efficiency to data center power distribution. GaN has been around for a while, but it’s early days for the technology in the data center. A number of companies are working to advance GaN and develop commercial products that can compete with traditional silicon-based transistors.

In examining the potential relevance of GaN for the data center industry, it’s useful to look at some history.

The Rise of the Transistor

In the late 1950s, transistors gained widespread use because they could be used in many different kind of applications. They were small and efficient, and rapidly displaced the vacuum tube technologies that had been prevalent at the time.

Over the course of the 1970s and 1980s, we saw a massive rise in silicon transistor capabilities. This was when we started to see more integrated circuits, earlier iterations of compute technologies, and more electronics in general impacting consumer and business life. When it came to power conversion, the silicon-based metal-oxide-semiconductor field-effect transistor (MOSFET) was at the center of it all.

Fast forward to 2018, and we’re approaching the technical limitations of silicon for power conversion. Performance gains are slowing, and its becoming more difficult to drive down cost. That’s why new solutions are being explored that can revolutionize the way power is delivered.

This brings us to gallium nitride (GaN), a material that’s actually been around since the 1990’s. However, research into semiconductor integration actually began in the 1960s. You know LEDs? GaN was used as a key component in that technology.

Today GaN is being used in the production of semiconductor power devices as well as RF radio components. When it comes to data center and power efficiency, GaN has demonstrated the capability to be the disruptive technology for silicon semiconductors in solutions which provide power conversion.

An Alternative to MOSFETs

In 2010 the first enhancement-mode gallium nitride transistors became generally available. Why is this important? These devices are designed to replace power MOSFETs in applications where switching speed or power conversion efficiency is critical.

GaN solutions have the opportunity to impact a number of industries. This includes telecom, industrial, automotive, and even renewable energy. In the case of renewables, GaN has the capability to reduce energy losses by up to 40 to 50 percent, with a significantly smaller and lighter PV inverter. Beyond that, GaN offers some seriously benefits over silicon, including faster switching speeds, pretty much no electrical resistance, less capacitance and lower costs to deploy.

I’m not saying that you should throw out your power supplies and go for GaN. However, you should realize that there are already real-world applications around GaN solutions in the data center. In fact, some have already been deployed.

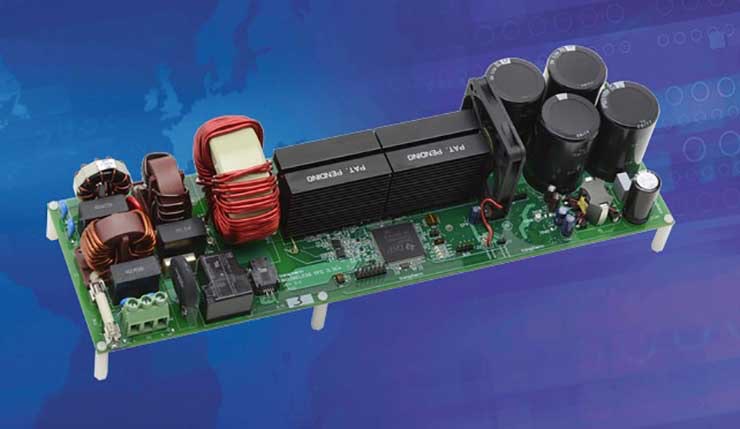

Just about a year ago, Transphorm, which focuses on high-performance, high-reliability GaN products, announced that Bel Power introduced the first-ever AC-DC power supply using Transphorm GaN FETs.

“Bel Power’s legacy of leading the global power management industry is built on responsible innovation that empowers our customers,” said Alain Chapuis, CTO of Bel Power Solutions. “The TET3000 is a result of that commitment. After considerable R&D weighing various semiconductor materials and power system designs, Transphorm’s GaN within a totem-pole PFC configuration proved the most reliable, highest performing solution possible today. In turn, our customers gain access to a next generation power supply that stands to outperform incumbent solutions while delivering a greater ROI.”

The product provides Bel Power three core benefits – smaller size with a higher power density, higher levels of efficiency, and lower cost by leveraging increased performance and higher power density using twice the on-resistance as silicon to help reduce system cost.

Transphorm and Bel Power aren’t alone in pursuing the development of GaN for use in servers and IT installations. Other vendors targeting this niche include GAN Systems and Efficient Power Conversion, which each offer products for data center operators.

Experiencing the Power Revolution

As with everything in technology, we’re always looking for the next big thing. For power conversion, GaN solutions may very well be that vehicle. For now, it is still a relatively newer technology and adoption is limited but certainly growing. This is impacting both the consumer and enterprise power spaces.

If you’re seeing power density, cost, and space as real issues, it’s not going to get easier any time soon. My biggest recommendation is to take a strategic approach to data center power design and be prepared for what future requirements might bring. That could include being conversant in the GaN solutions and their ability to help you manage power, density, and new requirements around your data center.

For the latest and most in-depth coverage of GaN technology and how it relates to the data center industry and future data center power, see below for Data Center Frontier’s latest coverage, including articles and a special report series.

About the Author

Bill Kleyman

Bill Kleyman is a veteran, enthusiastic technologist with experience in data center design, management and deployment. Bill is currently a freelance analyst, speaker, and author for some of our industry's leading publications.
